Premium Series – Smart Elevators for Modern Homes
Reliable structure, refined design — made for real living.
The Premium Series from Canny combines reliable engineering with
refined design, making it one of the top choices for modern residential elevators and modern home elevators in New Zealand. Built with a traditional
structural design that evenly distributes stress, this smart elevator ensures long-lasting durability, smooth operation,
and superior ride quality.

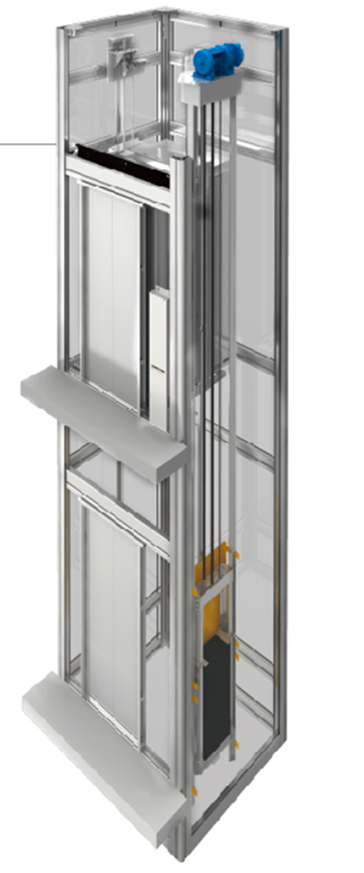

Designed as machine roomless elevators, the Premium Series is ideal for
retrofitting into existing homes, requiring minimal overhead space without
compromising performance or style. Its intelligent engineering makes
installation efficient while maintaining a sleek, modern aesthetic that
complements any interior.
Whether you are upgrading your
lifestyle, adding accessibility, or enhancing home value, Canny’s Premium Series
offers modern home elevators and smart elevator solutions that provide
safety, reliability, and a premium experience tailored for New Zealand
residences.
Balanced Structural Design
Enhanced durability and reliability
Smaller Overhead Requirement
Ideal for retrofit projects
MRL System
No machine room needed
Quiet Gearless Drive
Smooth, stable performance
Custom Interior Options
From glass doors to modern control panels
Specifications:
Advanced Safety Features in Every Canny Elevator
01 UPS Emergency Power Supply
In the event of a power outage, the built-in UPS (Uninterruptible Power Supply) activates automatically. It safely lowers the elevator to the nearest floor and opens the doors, allowing passengers to exit without panic or delay. This ensures reliable evacuation even during unexpected blackouts.
02 Safety Circuit Protection
Continuously monitors the entire electrical system to detect faults or anomalies. Automatically cuts power to prevent accidents caused by short circuits or wiring failures.
03 Door Interlock Protection
Prevents the elevator from operating unless all doors are securely closed and locked. Ensures passengers cannot travel unless conditions are completely safe.
04 Brake Test & Protection System
Performs real-time testing of the elevator’s braking system. Activates backup safety measures if abnormal braking is detected.
05 Terminal Speed Monitoring
Slows the elevator safely as it approaches the top or bottom floor, preventing abrupt stops or overshooting.
06 Limit Protection
Prevents the elevator from travelling beyond its designed travel range by automatically stopping the lift at predefined points.
07 Final Limit Protection
Acts as a secondary safety measure if the standard limit protection fails — halting the elevator immediately before reaching physical end stops.
08 Light Curtain Protection
A sensor grid across the elevator entrance detects movement. If a person or object is in the doorway, the doors will automatically reopen to prevent contact.
09 Anti-Door-Opening Protection (Out of Door Zone)
Prevents elevator doors from opening when the cabin is not precisely aligned with a floor — eliminating the risk of unsafe exits.
10 Overspeed Protection
Instantly activates the emergency braking system if the lift exceeds its rated speed, ensuring passenger safety in all conditions.
11 Overload Warning System
Detects if the weight inside the lift exceeds the safe limit and prevents operation. An audible and visual alert notifies passengers to reduce the load.
12 Automatic Levelling After Power Failure or Breakdown
In the event of a power outage or minor malfunction, the elevator automatically moves to the nearest floor and levels itself to ensure safe passenger exit.
13 Anti-Blocking Protection
Prevents the elevator from getting stuck or locked in between floors due to mechanical obstructions or system lag.
14 Frequency Converter Overheat Protection
Monitors internal temperature of the frequency converter (VFD) and pauses operation if overheating is detected, preventing system damage.
15 Drive Overload Protection
Prevents damage to the elevator’s drive system by cutting power during excessive load or torque conditions.
16 Drive Overcurrent Protection
Shuts off power when abnormally high current is detected, protecting the motor and internal components from burnout.
17 Main Circuit Fault Protection
Continuously checks the main power circuit. Interrupts operation if faults, voltage drops, or fluctuations are detected.
18 CAN Communication Fault Detection
Ensures smooth communication between elevator control modules. Detects and alerts for communication errors to prevent unsafe behavior.
19 Door Switch Fault Protection
Identifies faults in the door locking or switch system, disabling movement to avoid risks associated with door malfunction.
